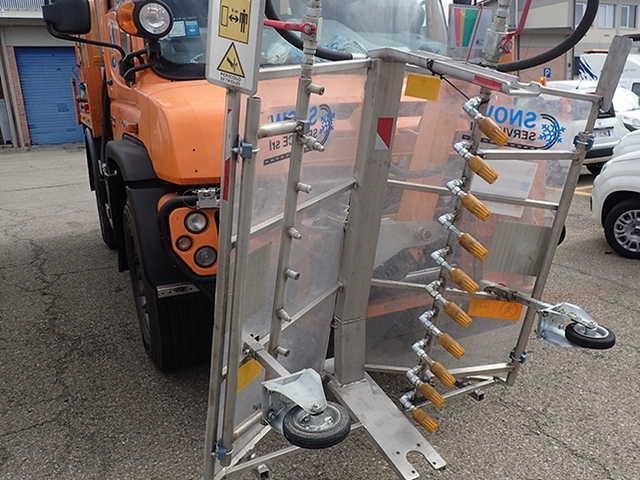

BLT GR tunnel washer spray bar with rotary nozzles

The BLTGR tunnel washer spray bar is a high-pressure spray bar completely in AISI 304 stainless steel, in tube-shaped frame, especially designed in order to allow the transfer/passage/flow of water at extremely high pressures, still preserving an excellent structural mechanical resistance. The tunnel spray bars can be designed according to the customer’s specific needs and can be equipped with ball joints/junctions to close the ending parts, useful during the transport of the equipment. The opening and closing procedures can be managed by means of hydraulic cylinders or electrical actuators (12/24 V). The rotary movement of the special rotary nozzles together with the pressure given by the water pump (installed on the back module) guarantee an optimal cleaning on any kind of wall/surface.

Uses of the BLT GR tunnel washer spray bar

It is designed to clean tunnels, sound absorbing walls, vertical walls, windows and road signs.

For further information on the BLT GR tunnel washer spray bar with rotary nozzles and for custom-made offers please do not hesitate to directly contact us or fill in the attached form!

Requested Water features:

Cleaning Area	Spray bar lenght	N° Nozzles	Flow rate min.	Pressure min	Pressure max
2000 mm	2000 mm	16	112 lt/min	100 bar	160 bar
3000 mm	3000 mm (1+2)	24	168 lt/min	100 bar	160 bar
4000 mm	4000 mm (1+2+1)	32	224 lt/min	100 bar	160 bar

What are the advantages of using cleaning system with high pressure nozzles compared to the brushes system?

Speed: the speed functioning of the system using these nozzles is increased of about 70% compared to the speed function when using brushes.
Management costs: the nozzles have low management costs, while the brushes have to be replaced every 50/80 working hours.
